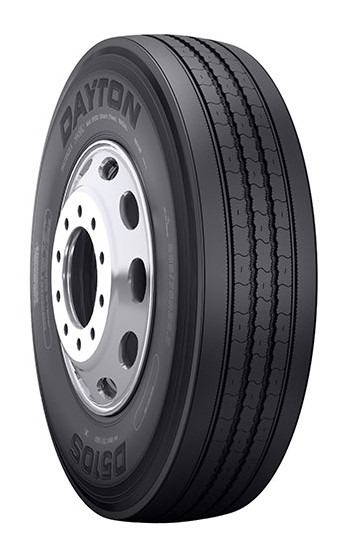

11R24.5 Dayton D520S Commercial Truck Tire (16 Ply)

The Dayton D520S is an all position on highway tire that is recommended for steer position use in regional applications. Featuring a five rib tread design, the D520S features reliable handling and maneuverability. With siping on the center ribs for improved tread life and enhanced traction, the D520S has wide straight tread grooves to enhance wet traction and evacuate water. The Dayton D520S is often used as a replacement for the Dayton Radial Metro All Position , Roadmaster RM185, Roadmaster RM170, Double Coin RR680, Double Coin RT600. For the Dayton D520S truck tire, call or order from our online tire store today.

Manufacturer: Dayton Tire
Manufacturers Part Number: 003284
Alternate Part Number: 006820
Tire Size: 11R24.5
Load Range: H
Ply Rating: 16
Weight: 109 lbs
Recommended Rim: 8.25 Inches
Overall Width: 10.7 Inches
Overall Width Loaded: 11.7 Inches
Overall Diameter: 43.3 Inches
Static Loaded Radius: 20.3 lbs
Tread Depth: 19 (32nds)
Max. Tire Load Single: 7160 lbs
Max. Tire Load Dual: 6610 lbs
Inflation Pressure: 120 psi
Max. Speed: 75 mph
Revolutions Per Mile: 480
